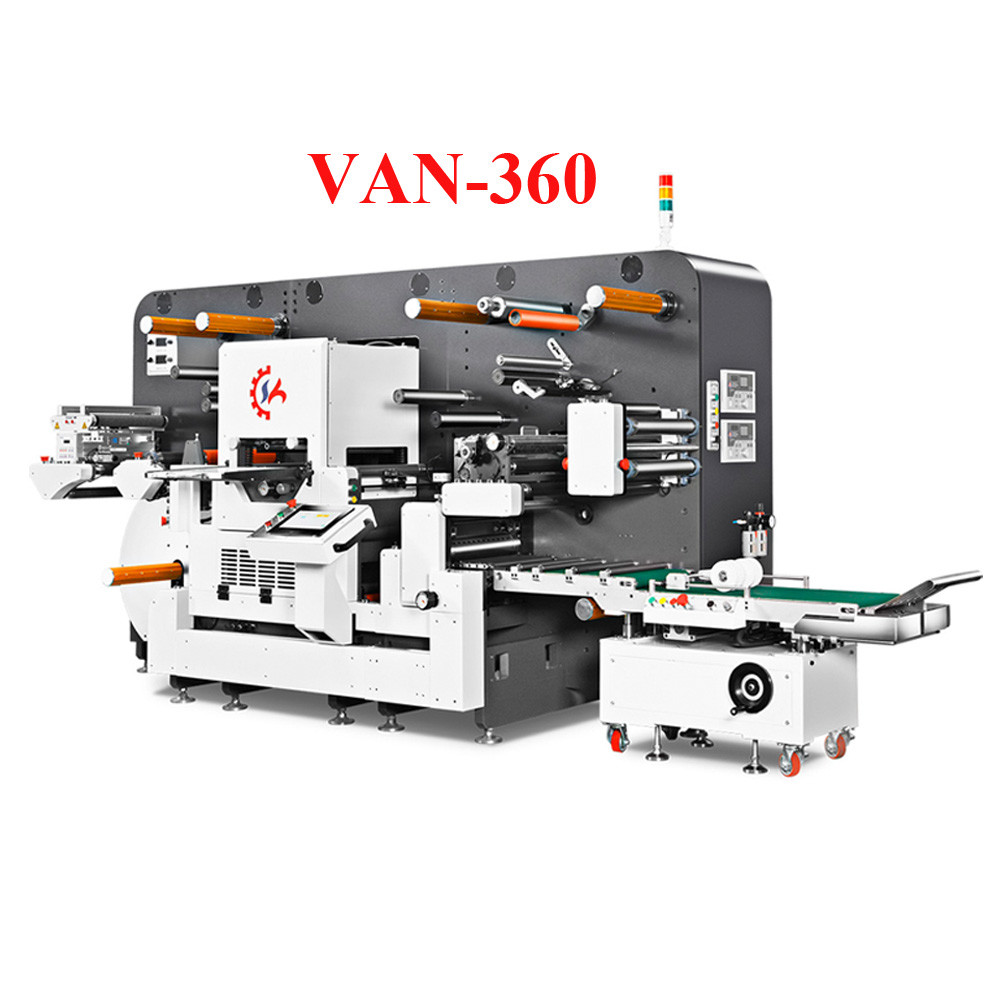

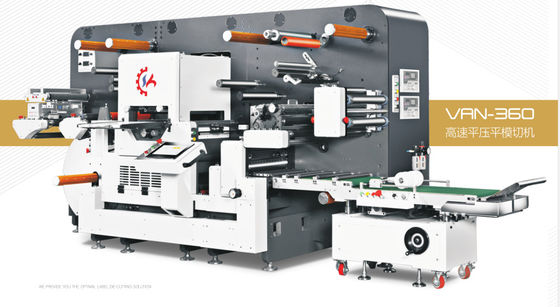

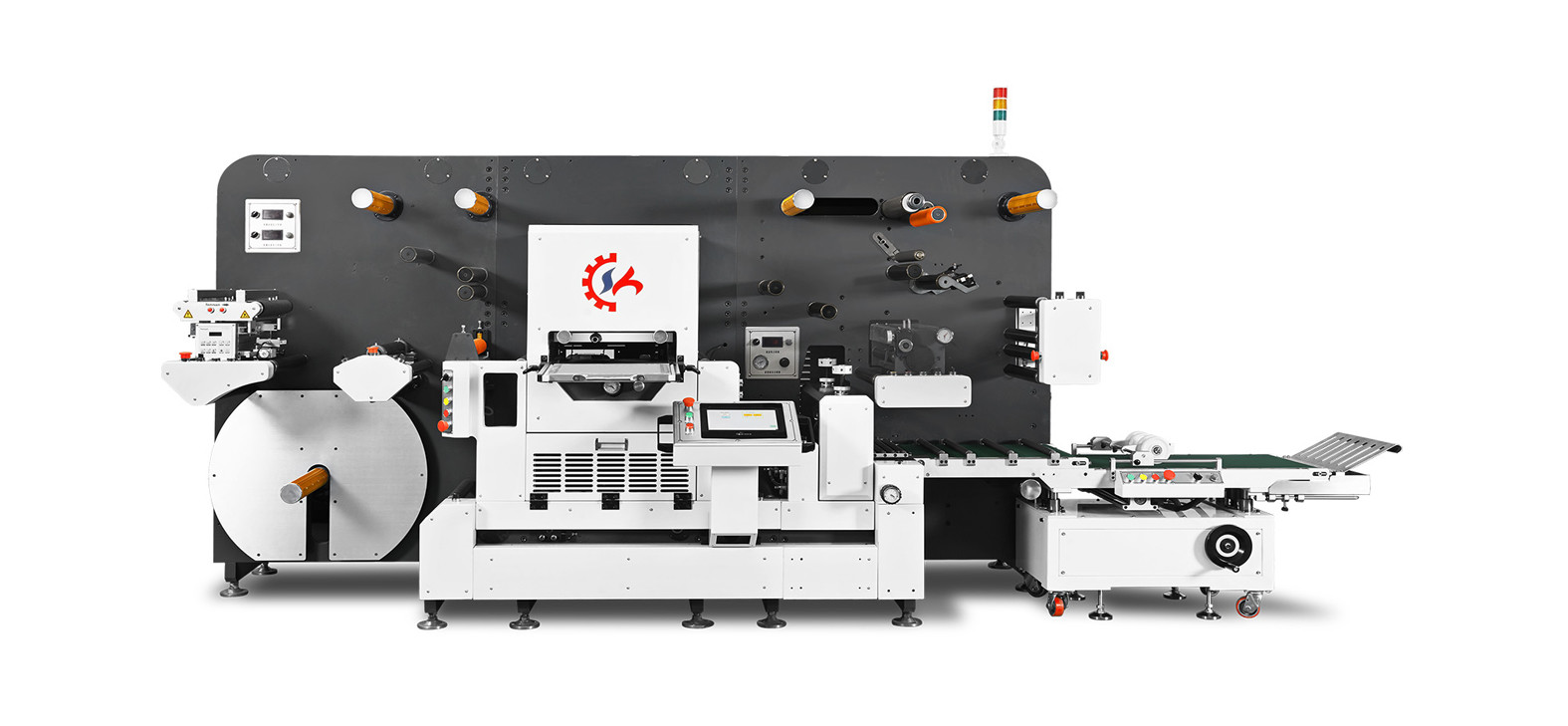

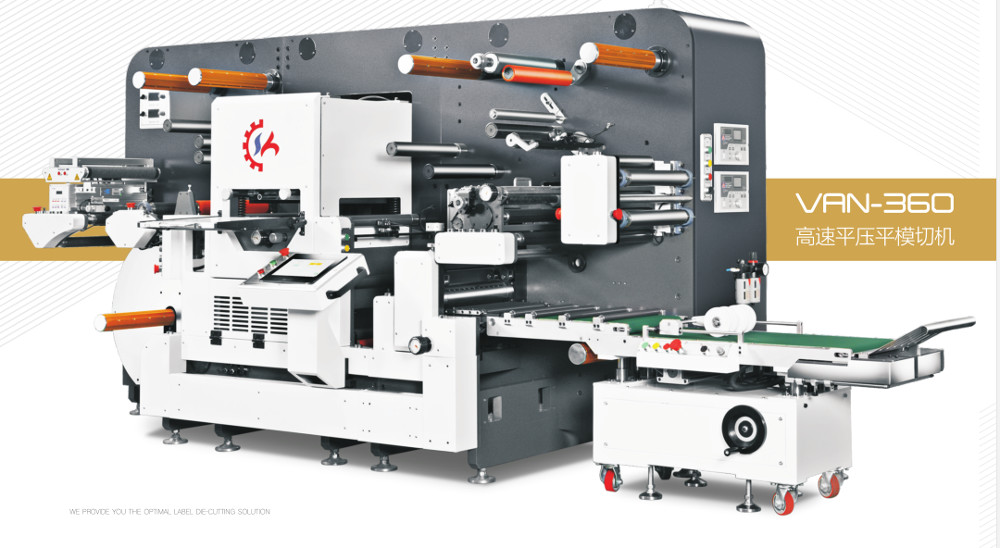

VAN-360 High Speed Flat Bed Die Cutting Machine With Slitting Machine
|
Model |
VAN-360 |
|
Max feeding width |
360mm |
|
Max die cutting speed |
120M/MIN |
|
Max die cutting size |
350mm*370mm |
|
Die cutting precision |
±0.1mm |
|
Hot stamping precision |
±0.1mm |
|
Max Hot foil diameter |
260mm |
|
Hot foil feeding driection |
0° /90° |
|
Max hot foil rolls |
8rolls |
|
Heat temperature |
0~200 ° C |
|
Full rotary die cutting size |
70-120teeth |
|
Min slitting width |
20mm |
|
Max unwinding diameter/meter |
700mm/2000M |
|
Max rewinding diameter/meter |
700mm/2000M |
|
Air pressure Supply |
0.4~0.6Mpa |
|
Voltage/current |
3 phase 380V |
|
Total power |
30KW |
|
Machine size |
3200*1400*1700mm |
