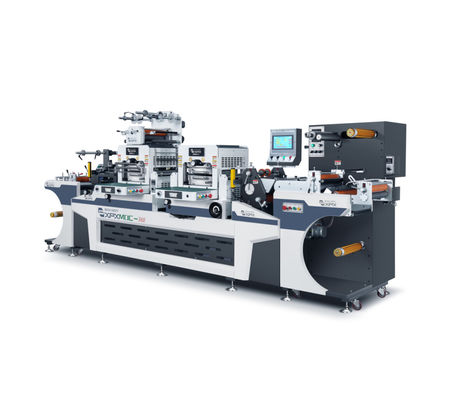

Automatic Flatbed Label Die Cutting Machine For Label Printing
  • name
  • name
  • name

Automatic Flatbed Label Die Cutting Machine For Label Printing

Price: $20,000.00 - $40,000.00/pieces
Supply Capacity: 50 Piece/Pieces per Month
Details Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
XPX
Certification
CE Certificate
Model Number
MDC-360
Dimension(L*W*H):
5200x1500mmx2000mm
Weight:
5500 Kg
Warranty:
One Year
Production Capacity:
100 M/min
Machinery Test Report:
Provided
Warranty Of Core Components:
1 Year
Function:
Hot Stamping
Application:
Label Printing
Color:
Black
Power Supplier:
3phases 380V 32A
Product Description



MDC-330 Automatic Flatbed Label Die Cutting Machine



MDC-330 high speed die cutting machine is suitable for die cutting and cutting kinds of labels .

It is widely applied to the label printing industry and electron indursty, such as adhesive label, nylon membrane trademark and the radium anti-fake trademark. etc



1). Using CNC drive system and accurate electric eye sensor tracking, simple operation, high efficiency, energy saving, low noise

2). Easy to operate and fast. A process to complete the winding, hot stamping, coating, die cutting, waste volume, rewinding and so on.

3) Easy maintenance, automatic supply lubrication system to prevent high-speed machine wear.

4). The use of advanced automatic control system, the paper is used up automatically stop, the paper is used up automatically stop

Pre-design count. Speed and length can be freely adjusted.

5). Japanese servo motor, CNC drive.



Automatic Flatbed Label Die Cutting Machine For Label Printing 0

Automatic Flatbed Label Die Cutting Machine For Label Printing 1





MDC-330 Automatic Flatbed Label Die Cutting Machine



MDC-330 High speed die cutting machine is suitable for die cutting and cutting a kind of labels .

It is widely used to the label printing industry and electron indursty, such as The paper adhesive label, nylon membrane trademark and the radium anti-fake trademark. etc





                     SPECIFICATIONS FOR SH-330 DIE CUTTING MACHINE
Model  SH-330 Height of die 7mm-23mm
Max feeding width 330mm Subplate thickness 0.5-3mm
Max paper length

260mm( left station)

330mm( right station)

 Precision ±0.1mm
Speed 400times/min Voltage/current 3 phase 380V/32A
Reverse hot stamping speed 38m/min Main motor power 7.5KW*2
Max unwinding diameter/meter 600mm/2000M Total power 20KW
Max rewinding diameter/meter 600mm/2000M Machine size  4000*1200*1800mm



Standard accessories

NO. NAME QTY UNIT NO. NAME QTY UNIT
1 Unwinder  1 Set 6 Main-machine interface  1 Set
2 Rewinder 1 Set 7 secondary die cutting device  1 Set
3 Die cutting upper and lower plate  1 Set 8 corundum paper roller 1 Set
4 Horizontal unwinding induction box  1 piece 9 Reverse hot stamping device 1 Set
5 Horizontal rewinding induction box  1 piece 10 Hot stamping heating plate  1 Set



 Automatic Flatbed Label Die Cutting Machine For Label Printing 2Automatic Flatbed Label Die Cutting Machine For Label Printing 3





Automatic Flatbed Label Die Cutting Machine For Label Printing 4

Automatic Flatbed Label Die Cutting Machine For Label Printing 5

Automatic Flatbed Label Die Cutting Machine For Label Printing 6

Automatic Flatbed Label Die Cutting Machine For Label Printing 7













Q1: How do you control the items quality?
A1: Each machine strictly tested one by one before shipping.

Q2: What is the delivery time?
A2: as normal 25days after confirm the payment


Q3: when we receive the box, find any items missing or defective, how should we do?
A3: please contact us ASAP, we will check and give you best solution soon.


Q4: what is your main product?
A4: We are a professional manufactuer for the hot stamping and die cutting machine


Q5: What is the payment method?
A5: T/T, Western Union, Money Gram, PayPal and so on.


Q6: What is the shipping method?
A6: FOB, CFR, CIF, DHL, TNT and so on, also according to your requirements.


Q7: What is quality guarantee policy?
A7: 12 months guarantee for all goods from our company, but we do not accept any broken by man.



Q8:How can visit our company ?

A8: we are located in Shenzhen ,it is very closed to HK and Guangzhou ,If  you want to visit my company ,

just call me Rita chen:+86-13823651762,we can pick you up to my company.



Tags:

Flatbed Die Cutting Machine,

Flat Bed Die Cutting Machine,

Flatbed Die Cutter Machine
