Flatbed Label Sticker Die Cut Machine Blank Barcode Die Cutting Machine

Price:	$20,000.00 - $40,000.00/pieces
Supply Capacity:	50 Piece/Pieces per Month

Details Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

Certification

CE Certificate

Model Number

MDC-360

Applicable Industries:

Printing Shops

Weight:

4500 Kg

Video Outgoing-inspection:

Provided

Warranty Of Core Components:

1 Year

Core Components:

Motor

PLC Brand:

Schneider

Product Name:

Die Cutting Machine

Function 2:

Hot Stamping

Power Supplier:

3phases 380V 32A

Highlight:

Flatbed Sticker Die Cut Machine

Blank Sticker Die Cut Machine

Barcode Label Die Cut Machine

Product Description

MDC-330 Flatbed Hot Stamping And Die Cutting Machine Sticker Die Cut Machine Barcode Label Die Cutting Machine Blank

MDC-330 Automatic Flatbed Label Die Cutting Machine

MDC-330 High speed die cutting machine is suitable for die cutting and cutting a kind of labels .

Widely used in label printing industry and electronics industry.

Such as paper self-adhesive labels, nylon film trademarks, radium anti-counterfeiting trademarks. Etc.

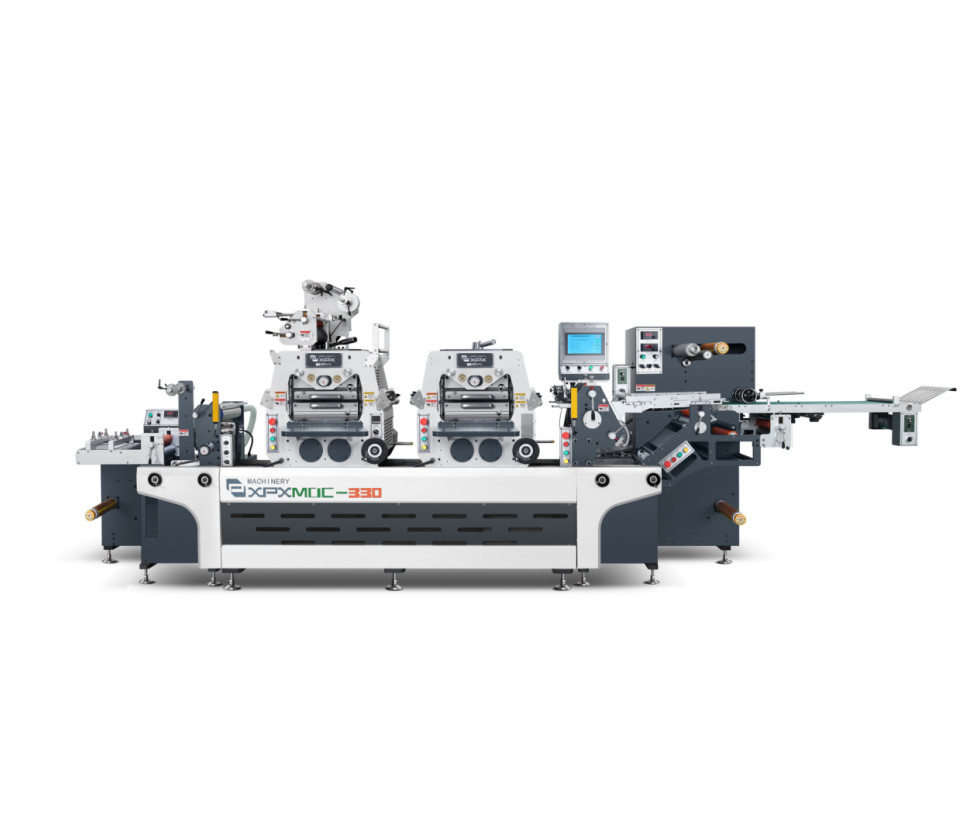

Flatbed Label Sticker Die Cut Machine Blank Barcode Die Cutting Machine 0

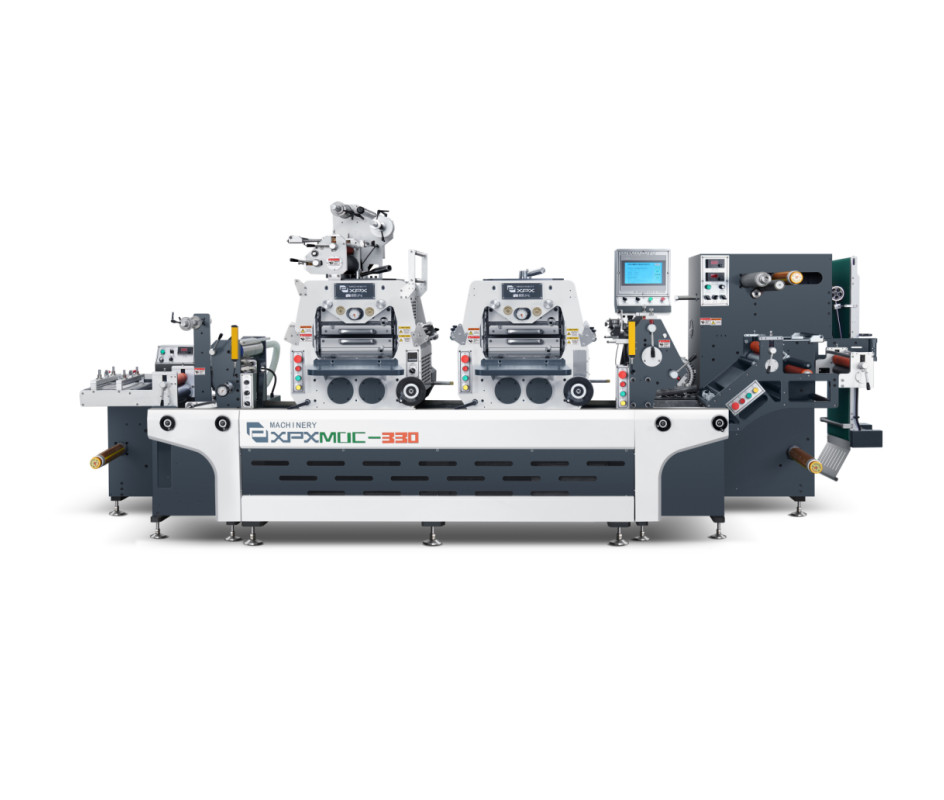

Flatbed Label Sticker Die Cut Machine Blank Barcode Die Cutting Machine 1

SPECIFICATIONS FOR SH-330 DIE CUTTING MACHINE
Model	SH-330	Height of die	7mm-23mm
Max feeding width	330mm	Subplate thickness	0.5-3mm
Max paper length	260mm( left station) 330mm( right station)	Precision	±0.1mm
Speed	400times/min	Voltage/current	3 phase 380V/32A
Reverse hot stamping speed	38m/min	Main motor power	7.5KW*2
Max unwinding diameter/meter	600mm/2000M	Total power	20KW
Max rewinding diameter/meter	600mm/2000M	Machine size	400012001800mm

Standard accessories

NO.	NAME	QTY	UNIT	NO.	NAME	QTY	UNIT
1	Unwinder	1	Set	6	Main-machine interface	1	Set
2	Rewinder	1	Set	7	secondary die cutting device	1	Set
3	Die cutting upper and lower plate	1	Set	8	corundum paper roller	1	Set
4	Horizontal unwinding induction box	1	piece	9	Reverse hot stamping device	1	Set
5	Horizontal rewinding induction box	1	piece	10	Hot stamping heating plate	1	Set

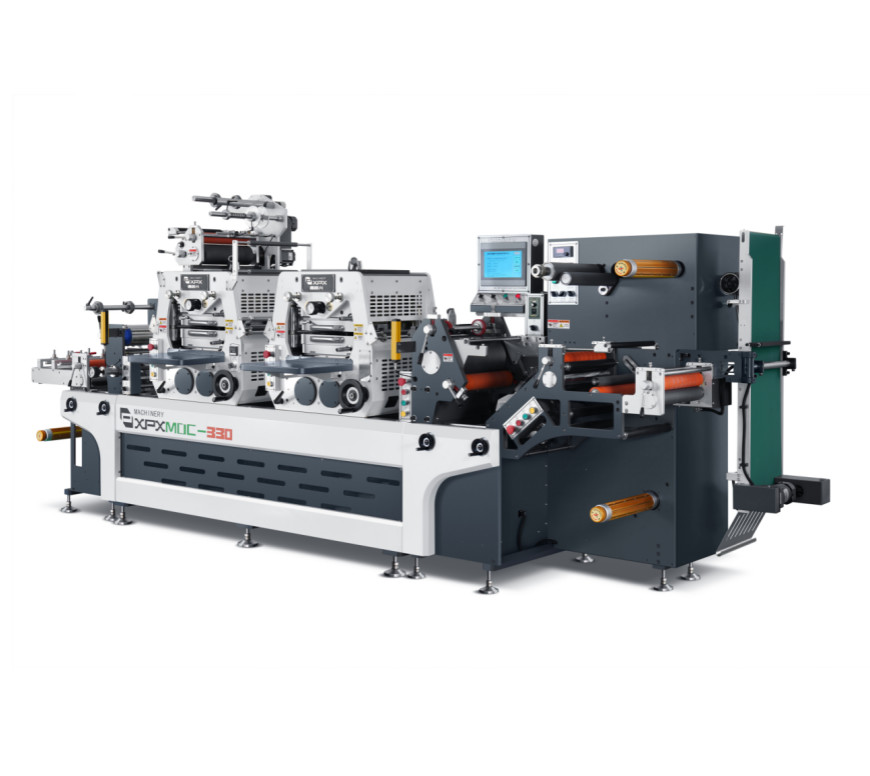

Flatbed Label Sticker Die Cut Machine Blank Barcode Die Cutting Machine 2

1).With CNC driving system and accurate Electric eye sensor tracking, simple operation,high efficiency,energy saving and low noise

.die-cutting precision can reaches 0.05mm
2).Easy to operate, high speed. A process finishes unwinding, hot stamping, laminating, die-cutting, waste rewinding, rewinding etc.
3).Easy to maintain, automatic supply lubrication system to prevent machine wearing out at high speed.

Flatbed Label Sticker Die Cut Machine Blank Barcode Die Cutting Machine 4

Flatbed Label Sticker Die Cut Machine Blank Barcode Die Cutting Machine 5

Flatbed Label Sticker Die Cut Machine Blank Barcode Die Cutting Machine 6

Flatbed Label Sticker Die Cut Machine Blank Barcode Die Cutting Machine 7

Q1: How do you control the items quality?
A1: Each machine strictly tested one by one before shipping.

Q2: What is the delivery time?
A2: as normal 25days after confirm the payment

Q3: when we receive the box, find any items missing or defective, how should we do?
A3: please contact us ASAP, we will check and give you best solution soon.

Q4: what is your main product?
A4: We are a professional manufactuer for the hot stamping and die cutting machine

Q5: What is the payment method?
A5: T/T, Western Union, Money Gram, PayPal and so on.

Q6: What is the shipping method?
A6: FOB, CFR, CIF, DHL, TNT and so on, also according to your requirements.

Q7: What is quality guarantee policy?
A7: 12 months guarantee for all goods from our company, but we do not accept any broken by man.
