Sticker Label Die Cutter Machine High Speed Barcode Label Die Cutting Machine
  • name
  • name
  • name

Sticker Label Die Cutter Machine High Speed Barcode Label Die Cutting Machine

Price: $22,500.00-$25,500.00/pieces
Details Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
Xinpengxing
Model Number
MDC-S-360
Core Components:
Motor, Bearing, Gear, Gearbox
Type:
Paper Cutting Machine
Warranty:
365days
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Model:
MDC-S-360
Max Speed:
400m/min
Function 1:
Die Cutting
Application:
Label Printing Company
Color:
Gray+white
Highlight:

Sticker Label Die Cutter Machine

,

Label Die Cutter Machine High Speed

Product Description

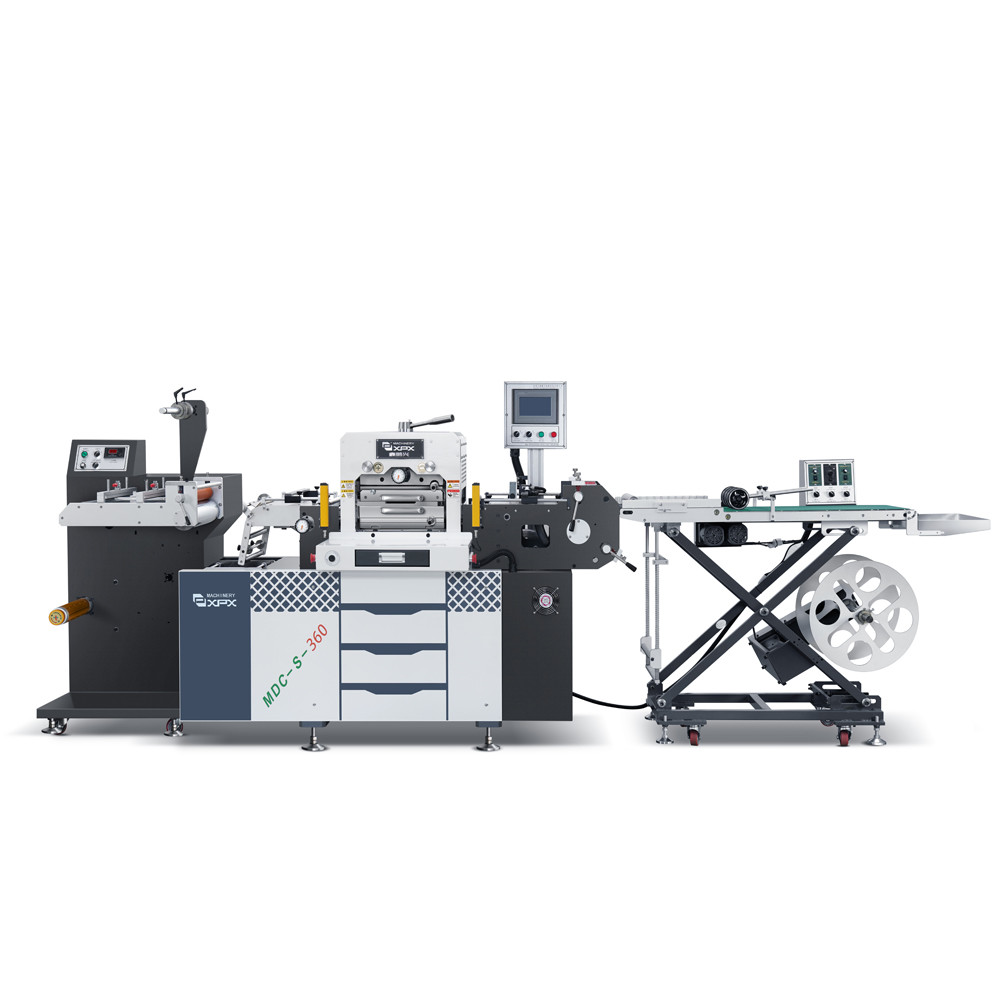

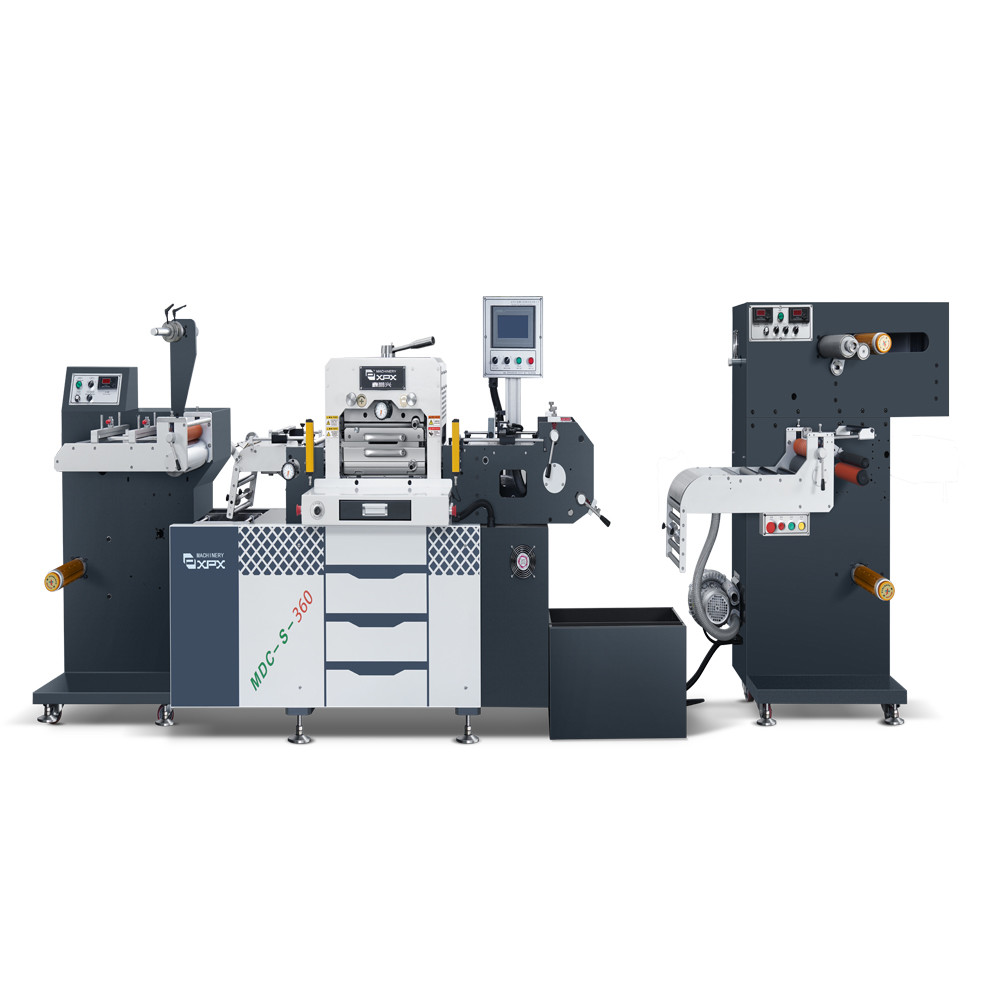

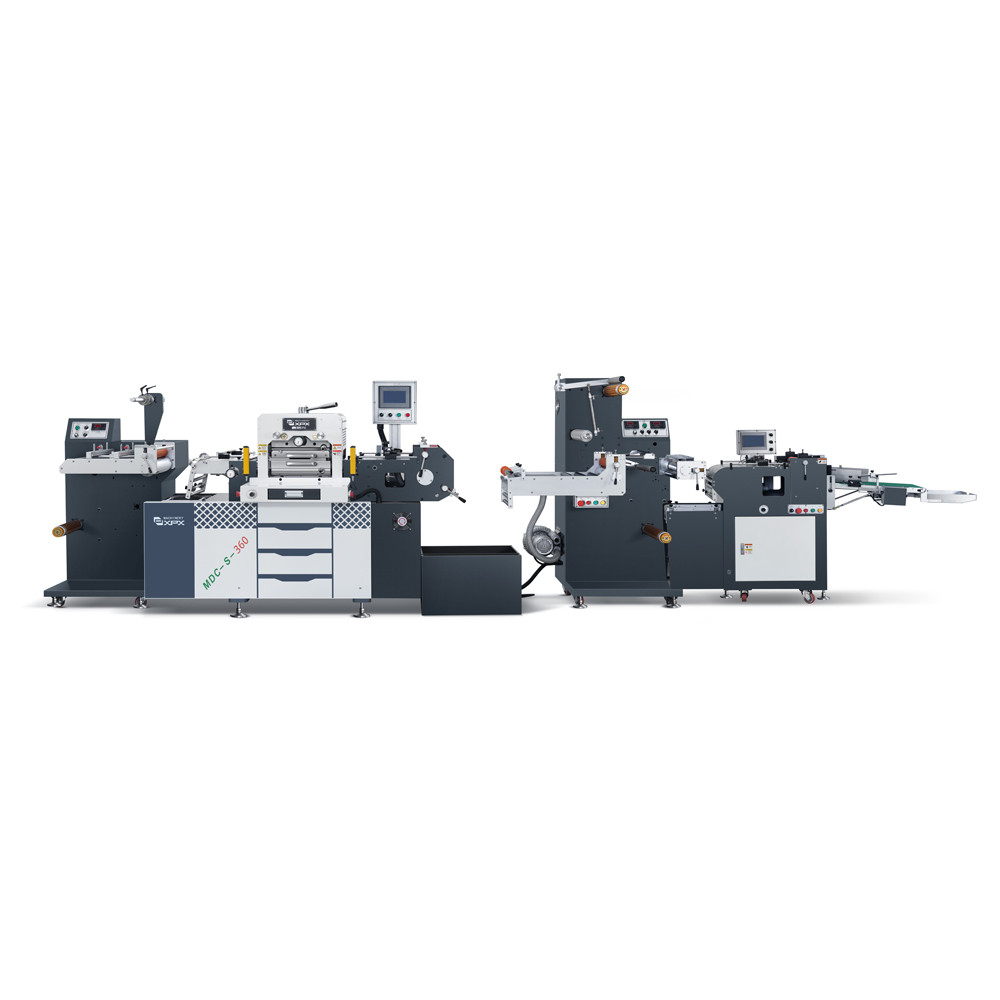

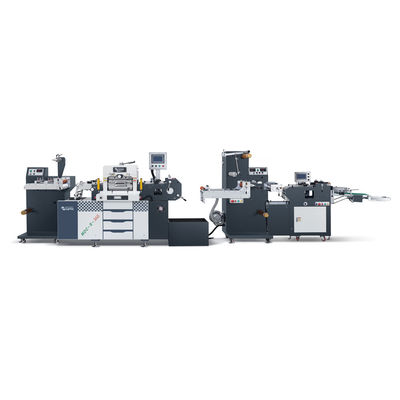

MDC-S-360 High Speed 400times/Min Sticker Die Cut Machine Sticker Die Cut Machine Barcode Label Die Cutting Machine

MDC-S-330 Automatic Fatbed Label Die Cutting Machine



MDC-S-360 high speed die-cutting machine is suitable for die-cutting and cutting labels.

Widely used in label printing industry and electronics industry,s uch as paper self-adhesive labels, nylon film trademarks, radium anti-counterfeiting trademarks. Etc.Sticker Label Die Cutter Machine High Speed Barcode Label Die Cutting Machine 0

Sticker Label Die Cutter Machine High Speed Barcode Label Die Cutting Machine 1









                     SPECIFICATIONS FOR MDC-S-360 DIE CUTTING MACHINE
Model  MDC-S-360 Height of die 7mm-9mm
Max feeding width 360mm Subplate thickness 0.5-3mm
Max paper length

370MM

 Precision ±0.1mm
Speed 400times/min Voltage/current 3 phase 380V/32A
Reverse hot stamping speed 38m/min Main motor power 7.5KW*2
Max unwinding diameter/meter 500mm/2000M Total power 20KW
Max rewinding diameter/meter 500mm/2000M Machine size  4000*1200*1800mm



Standard accessories

NO. NAME QTY UNIT NO. NAME QTY UNIT
1 Unwinder  1 Set 6 Main-machine interface  1 Set
2 Rewinder 1 Set 7 secondary die cutting device  1 Set
3 Die cutting upper and lower plate  1 Set 8 corundum paper roller 1 Set
4 Horizontal unwinding induction box  1 piece 9 Reverse hot stamping device 1 Set
5 Horizontal rewinding induction box  1 piece 10 Hot stamping heating plate  1 Set



 Sticker Label Die Cutter Machine High Speed Barcode Label Die Cutting Machine 2Sticker Label Die Cutter Machine High Speed Barcode Label Die Cutting Machine 3Sticker Label Die Cutter Machine High Speed Barcode Label Die Cutting Machine 4





Sticker Label Die Cutter Machine High Speed Barcode Label Die Cutting Machine 5

Sticker Label Die Cutter Machine High Speed Barcode Label Die Cutting Machine 6

Sticker Label Die Cutter Machine High Speed Barcode Label Die Cutting Machine 7

Sticker Label Die Cutter Machine High Speed Barcode Label Die Cutting Machine 8













Q1: How do you control the items quality?
A1: Each machine strictly tested one by one before shipping.

Q2: What is the delivery time?
A2: as normal 25days after confirm the payment


Q3: when we receive the box, find any items missing or defective, how should we do?
A3: please contact us ASAP, we will check and give you best solution soon.


Q4: what is your main product?
A4: We are a professional manufactuer for the hot stamping and die cutting machine


Q5: What is the payment method?
A5: T/T, Western Union, Money Gram, PayPal and so on.


Q6: What is the shipping method?
A6: FOB, CFR, CIF, DHL, TNT and so on, also according to your requirements.


Q7: What is quality guarantee policy?
A7: 12 months guarantee for all goods from our company, but we do not accept any broken by man.



Q8:How can visit our company ?

A8: we are located in Shenzhen ,it is very closed to HK and Guangzhou ,If  you want to visit my company ,

just call me Rita chen:+86-13823651762,we can pick you up to my company.
