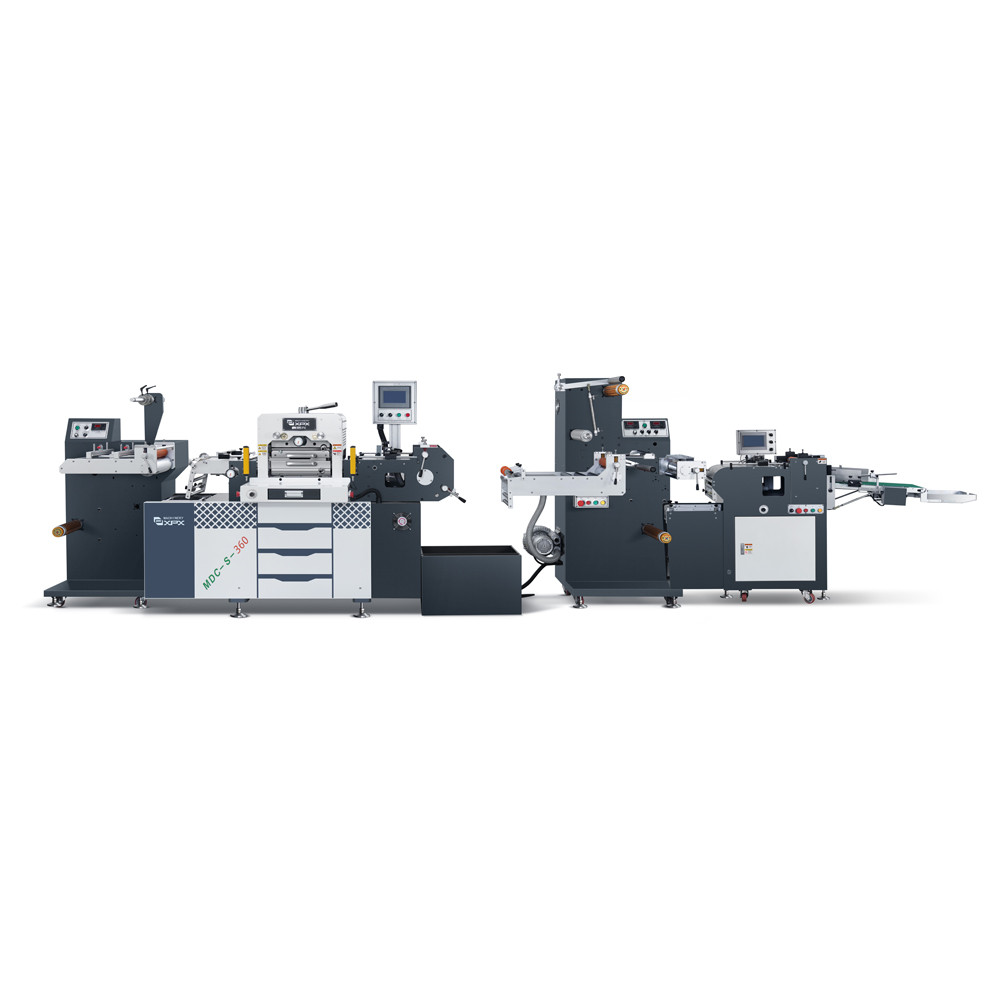

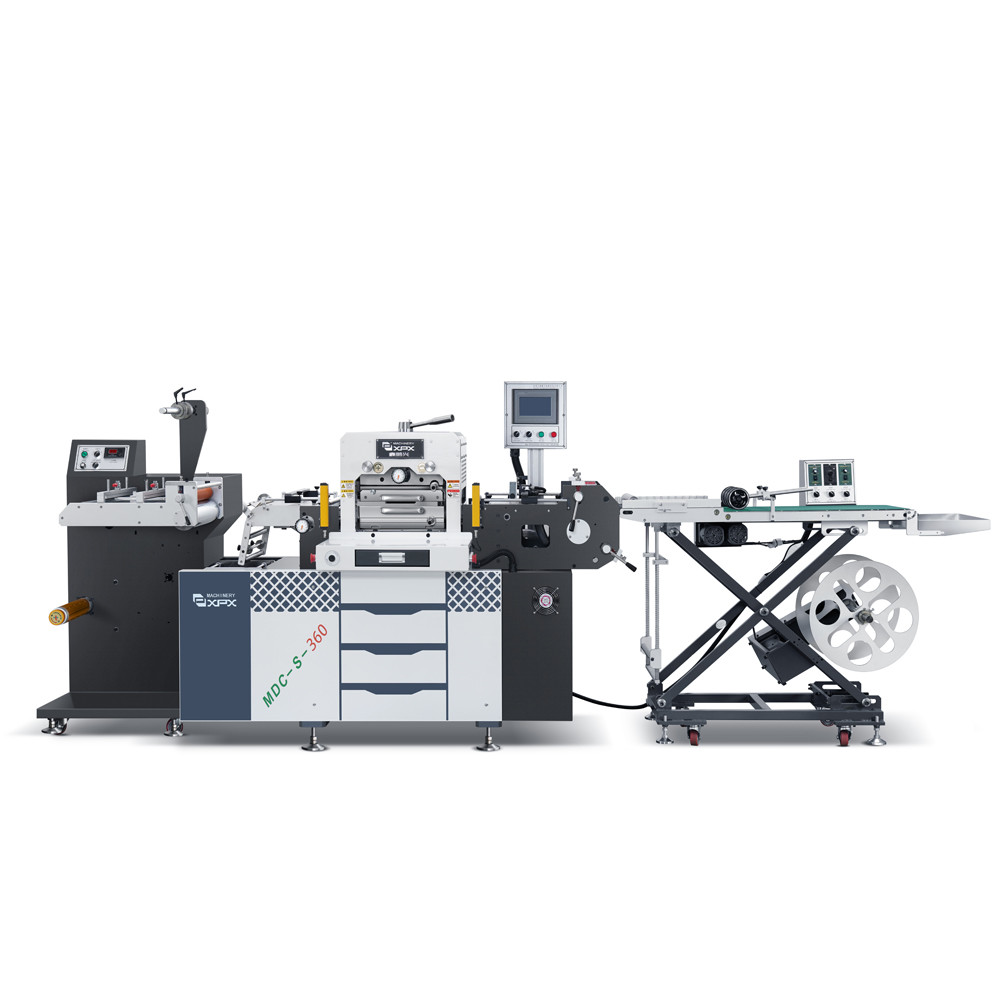

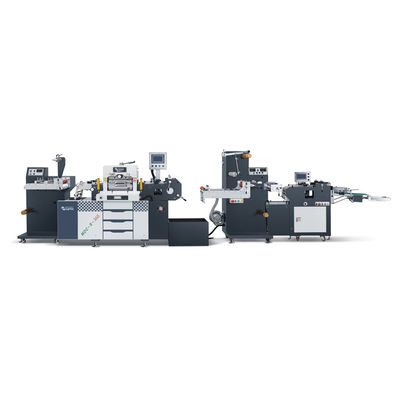

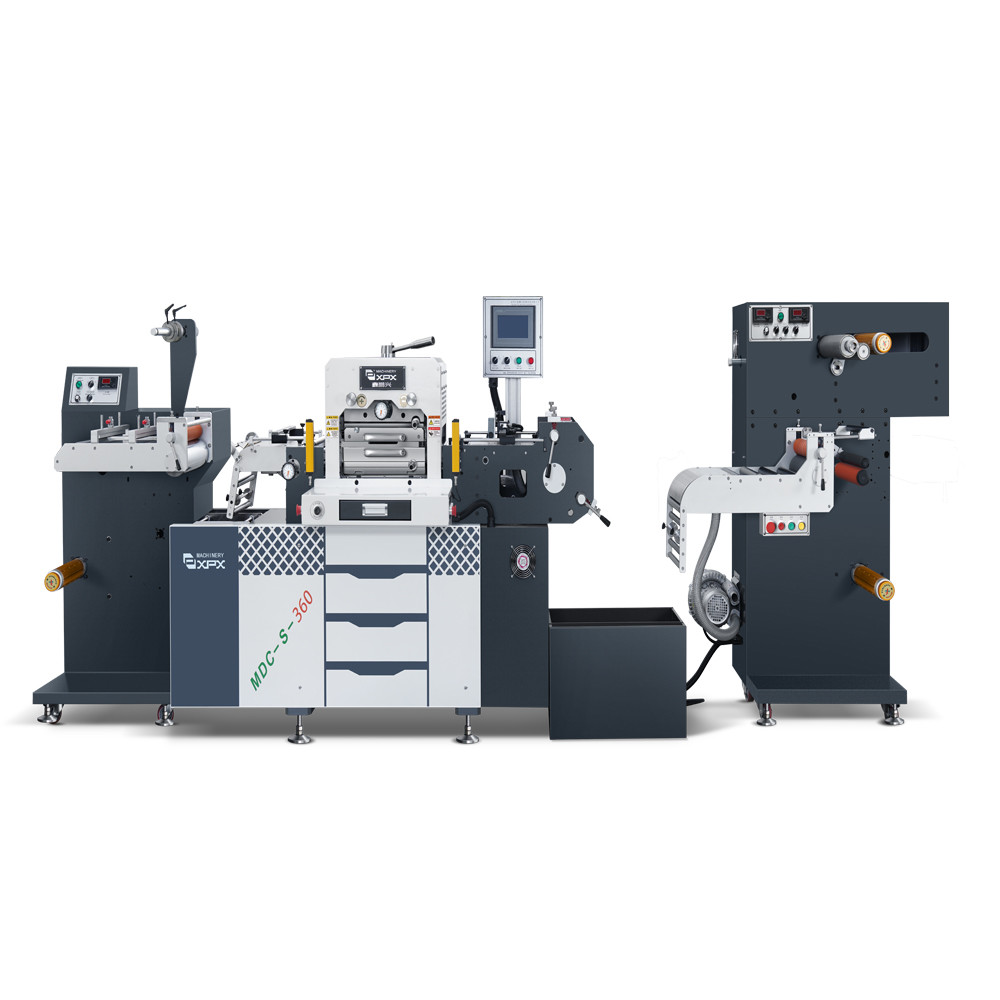

MDC-S-360 Label Die Cutting Machine with Accurate Electric Eye Sensor
MDC-S-330 Automatic Flatbed Label Die Cutting Machine
MDC-S-360 High speed die cutting machine is suitable for die cutting and cutting a kind of labels .
The versatility of these machines, combined with a wide range of available dies, makes them valuable tools in numerous industries and creative endeavors.
1). Using CNC drive system and accurate electric eye sensor tracking, simple operation, high efficiency, energy saving, low noise. The die cutting accuracy can reach 0.05mm
2). Easy to operate and fast. A process to complete the winding, hot stamping, coating, die cutting, waste volume, rewinding and so on.
3) Easy maintenance, automatic supply lubrication system to prevent high-speed machine wear.
4). Using advanced automatic control system, the web is automatically stopped when it is used up, and the set amount is automatically stopped. Speed and length can be freely adjusted.
5). Using Panasonic servo motor, CNC drive.
| SPECIFICATIONS FOR MDC-S-360 DIE CUTTING MACHINE | |||
| Model | MDC-S-360 | Height of die | 7mm-9mm |
| Max feeding width | 360mm | Subplate thickness | 0.5-3mm |
| Max paper length |
370MM |
Precision | ±0.1mm |
| Speed | 400times/min | Voltage/current | 3 phase 380V/32A |
| Reverse hot stamping speed | 38m/min | Main motor power | 7.5KW*2 |
| Max unwinding diameter/meter | 500mm/2000M | Total power | 20KW |
| Max rewinding diameter/meter | 500mm/2000M | Machine size | 4000*1200*1800mm |
Standard accessories
| NO. | NAME | QTY | UNIT | NO. | NAME | QTY | UNIT |
| 1 | Unwinder | 1 | Set | 6 | Main-machine interface | 1 | Set |
| 2 | Rewinder | 1 | Set | 7 | secondary die cutting device | 1 | Set |
| 3 | Die cutting upper and lower plate | 1 | Set | 8 | corundum paper roller | 1 | Set |
| 4 | Horizontal unwinding induction box | 1 | piece | 9 | Reverse hot stamping device | 1 | Set |
| 5 | Horizontal rewinding induction box | 1 | piece | 10 | Hot stamping heating plate | 1 | Set |
Q1: How do you control the items quality?
A1: Each machine strictly tested one by one before shipping.
Q2: What is the delivery time?
A2: as normal 25days after confirm the payment
Q3: when we receive the box, find any items missing or defective, how should we do?
A3: please contact us ASAP, we will check and give you best solution soon.
Q4: what is your main product?
A4: We are a professional manufactuer for die cutting machine
Q5: What is the payment method?
A5: T/T, Western Union, PayPal and so on.
Q6: What is the shipping method?
A6: FOB, CFR, CIF, DHL, TNT and so on, according to your requirements.
Q7: What is quality guarantee policy?
A7: 12 months guarantee for all goods from our company, but we do not accept any artificial damage.
