MDC-460 High Quality Label Die Cutter For Large Die Cutting Size

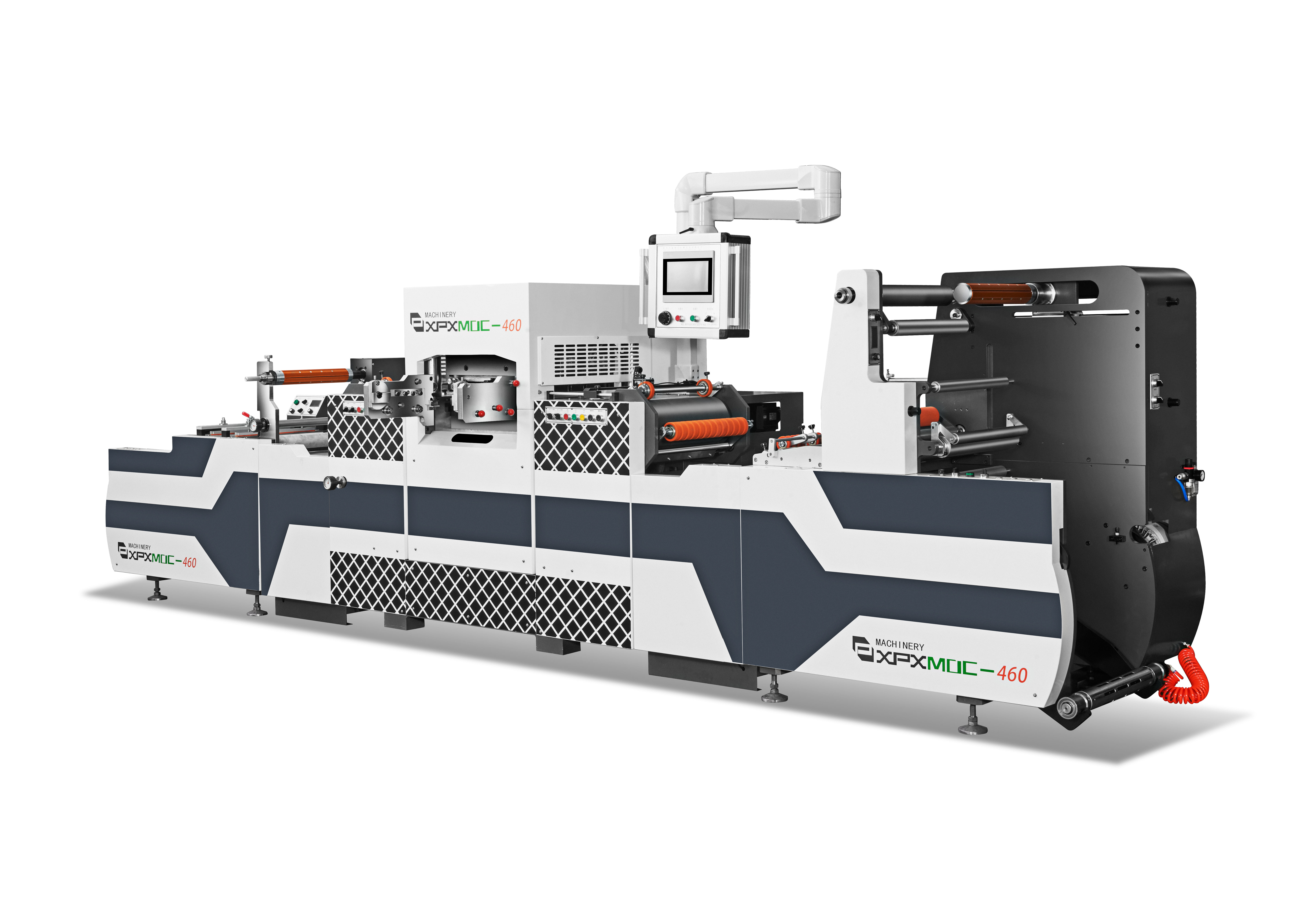

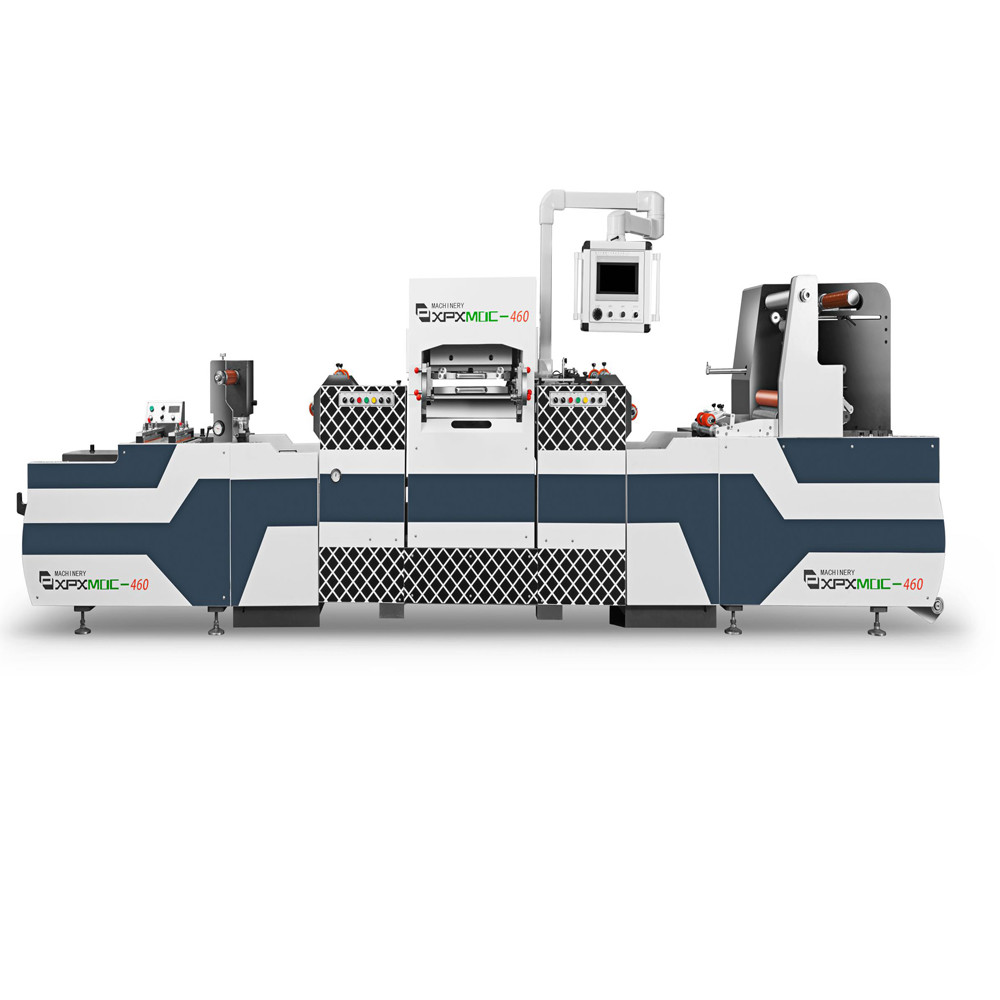

MDC-460 Automatic Flatbed Label Die Cutting Machine
It is widely used to the label printing industry and electron indursty, such as The paper adhesive label, nylon membrane trademark and the radium anti-fake trademark. etc
They are often used in industries where customization and branding are essential, such as product packaging, marketing materials, and labeling for various consumer goods.
1). Using CNC drive system and accurate electric eye sensor tracking, simple operation, high efficiency, energy saving, low noise. The die cutting accuracy can reach 0.05mm
2). Easy to operate and fast. A process to complete the winding, hot stamping, coating, die cutting, waste volume, rewinding and so on.
3) Easy maintenance, automatic supply lubrication system to prevent high-speed machine wear.
4). Using advanced automatic control system, the web is automatically stopped when it is used up, and the set amount is automatically stopped. Speed and length can be freely adjusted.
5). Using Japanese servo motor, CNC drive.
| SPECIFICATIONS FOR MDC-330 DIE CUTTING MACHINE | |||
| Model | MDC-460 | Height of die | 7mm-9mm |
| Max feeding width | 460mm | Subplate thickness | 0.5-3mm |
| Max paper length |
460MM |
Precision | ±0.1mm |
| Speed | 400times/min | Voltage/current | 3 phase 380V/40A |
| Reverse hot stamping speed | 38m/min | Main motor power | 7.5KW*2 |
| Max unwinding diameter/meter | 1000mm | Total power | 20KW |
| Max rewinding diameter/meter | 1000MM | Machine size | 5700*1400*2100mm |
Standard accessories
| NO. | NAME | QTY | UNIT | NO. | NAME | QTY | UNIT |
| 1 | Unwinder | 1 | Set | 4 | Main-machine interface | 1 | Set |
| 2 | Rewinder | 1 | Set | 5 | secondary die cutting device | 1 | Set |
| 3 | Die cutting upper and lower plate | 1 | Set | 6 | corundum paper roller | 1 | Set |
MACHINES INSTALLED IN OUR CUSTOMERS' FACTORIES
Q1: How do you control the items quality?
A1: Each machine strictly tested one by one before shipping.
Q2: What is the delivery time?
A2: as normal 25days after confirm the payment
Q3: when we receive the box, find any items missing or defective, how should we do?
A3: please contact us ASAP, we will check and give you best solution soon.
Q4: what is your main product?
A4: We are a professional manufactuer for the hot stamping and die cutting machine
Q5: What is the payment method?
A5: T/T, Western Union, Money Gram, PayPal and so on.
