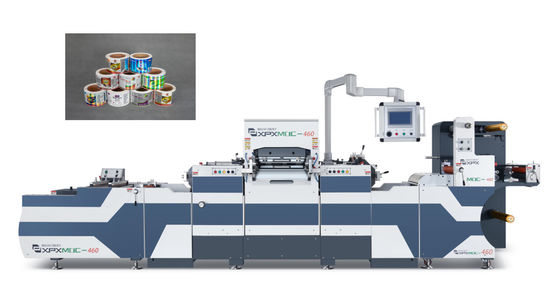

MDC-460 high speed Die Cutting Machine max die cutting size 450mm*450mm
| SPECIFICATIONS FOR MDC-330 DIE CUTTING MACHINE | |||
| Model | MDC-460 | Height of die | 7mm-9mm |
| Max feeding width | 460mm | Subplate thickness | 0.5-3mm |
| Max paper length |
460MM |
Precision | ±0.1mm |
| Speed | 400times/min | Voltage/current | 3 phase 380V/40A |
| Reverse hot stamping speed | 38m/min | Main motor power | 7.5KW*2 |
| Max unwinding diameter/meter | 1000mm | Total power | 20KW |
| Max rewinding diameter/meter | 1000MM | Machine size | 5700*1400*2100mm |
Standard accessories
| NO. | NAME | QTY | UNIT | NO. | NAME | QTY | UNIT |
| 1 | Unwinder | 1 | Set | 4 | Main-machine interface | 1 | Set |
| 2 | Rewinder | 1 | Set | 5 | secondary die cutting device | 1 | Set |
| 3 | Die cutting upper and lower plate | 1 | Set | 6 | corundum paper roller | 1 | Set |
1).With CNC driving system and accurate Electric eye sensor tracking, simple operation,high efficiency,energy saving and low noise
.die-cutting precision can reaches 0.05mm
2).Easy to operate, high speed. A process finishes unwinding, hot stamping, laminating, die-cutting, waste rewinding, rewinding etc.
3).Easy to maintain, automatic supply lubrication system to prevent machine wearing out at high speed.
4).Applying advanced auto-control system, auto-stop when web is running out, machines stops automatically when it reaches
preset count number. Speed&length can be adjusted freely.
5).With Japanese servo motor, CNC driving.
MACHINES INSTALLED IN OUR CUSTOMERS' FACTORIES
Q1: How do you control the items quality?
A1: Each machine strictly tested one by one before shipping.
Q2: What is the delivery time?
A2: as normal 25days after confirm the payment
Q3: when we receive the box, find any items missing or defective, how should we do?
A3: please contact us ASAP, we will check and give you best solution soon.
Q4: what is your main product?
A4: We are a professional manufactuer for the hot stamping and die cutting machine
Q5: What is the payment method?
A5: T/T, Western Union, Money Gram, PayPal and so on.
Q6: What is the shipping method?
A6: FOB, CFR, CIF, DHL, TNT and so on, also according to your requirements.
Q7: What is quality guarantee policy?
A7: 12 months guarantee for all goods from our company, but we do not accept any broken by man.
Q8:How can visit our company ?
A8: we are located in Shenzhen ,it is very closed to HK and Guangzhou ,If you want to visit my company ,
just call me Rita chen:+86-13823651762,we can pick you up to my company.
