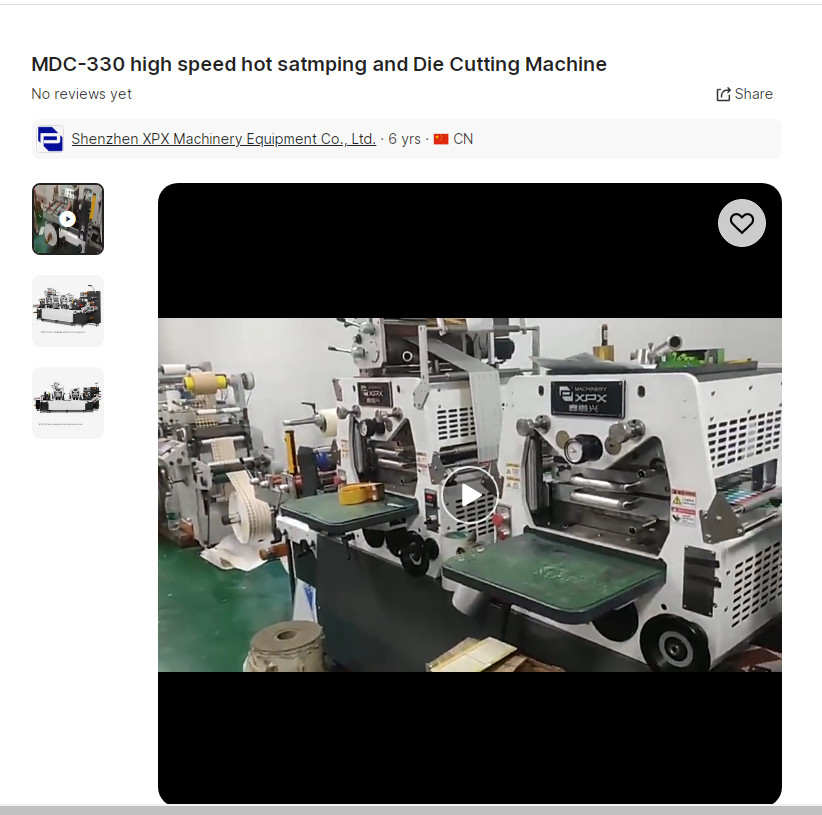

MDC-330 Automatic Flatbed Label Die Cutting Machine
MDC-330 High speed die cutting machine is suitable for die cutting and cutting a kind of labels .
It is widely used to the label printing industry and electron indursty such as The paper adhesive label, nylon membrane trademark and the radium anti-fake trademark. etc
1). Using CNC drive system and accurate electric eye sensor tracking, simple operation, high efficiency, energy saving, low noise. The die cutting accuracy can reach 0.05mm.
2). Easy to operate, high speed. A process finishes unwinding, hot stamping, laminating, die-cutting, waste rewinding, rewinding etc.
3). Easy to maintain, automatic supply lubrication system to prevent machine wearing out at high speed.
4). Using advanced automatic control system, the web is automatically stopped when it is used up, and the set amount is automatically stopped. Speed and length can be freely adjusted.
5). Japanese servo motor, CNC driving.
| SPECIFICATIONS FOR SH-330 DIE CUTTING MACHINE | |||
| Model | SH-330 | Height of die | 7mm-9mm |
| Max feeding width | 330mm | Subplate thickness | 0.5-1mm |
| Max paper length |
350mm |
Precision | ±0.1mm |
| Speed | 400times/min | Voltage/current | 3 phase 380V/32A |
| Reverse hot stamping speed | 38m/min | Main motor power | 7.5KW*2 |
| Max unwinding diameter/meter | 600mm/2000M | Total power | 20KW |
| Max rewinding diameter/meter | 600mm/2000M | Machine size | 4000*1200*1800mm |
Standard accessories
| NO. | NAME | QTY | UNIT | NO. | NAME | QTY | UNIT |
| 1 | Unwinder | 1 | Set | 6 | Main-machine interface | 1 | Set |
| 2 | Rewinder | 1 | Set | 7 | secondary die cutting device | 1 | Set |
| 3 | Die cutting upper and lower plate | 1 | Set | 8 | corundum paper roller | 1 | Set |
| 4 | Horizontal unwinding induction box | 1 | piece | 9 | Reverse hot stamping device | 1 | Set |
| 5 | Horizontal rewinding induction box | 1 | piece | 10 | Hot stamping heating plate | 1 | Set |
Q1: How do you control the items quality?
A1: Each machine strictly tested one by one before shipping.
Q2: What is the delivery time?
A2: as normal 25days after confirm the payment
Q3: when we receive the box, find any items missing or defective, how should we do?
A3: please contact us ASAP, we will check and give you best solution soon.
Q4: What is the payment method?
A4: T/T, Western Union, Money Gram, PayPal and so on.
Q5: What is the shipping method?
A5: FOB, CFR, CIF, DHL, TNT and so on, also according to your requirements.
Q6: What is quality guarantee policy?
A6: 12 months guarantee for all goods from our company, but we do not accept artificial damage.
Q7:How can visit our company ?
A7: we are located in Shenzhen ,it is very closed to HK and Guangzhou ,If you want to visit my company ,
just call me Rita chen:+86-13823651762,we can pick you up to my company.
