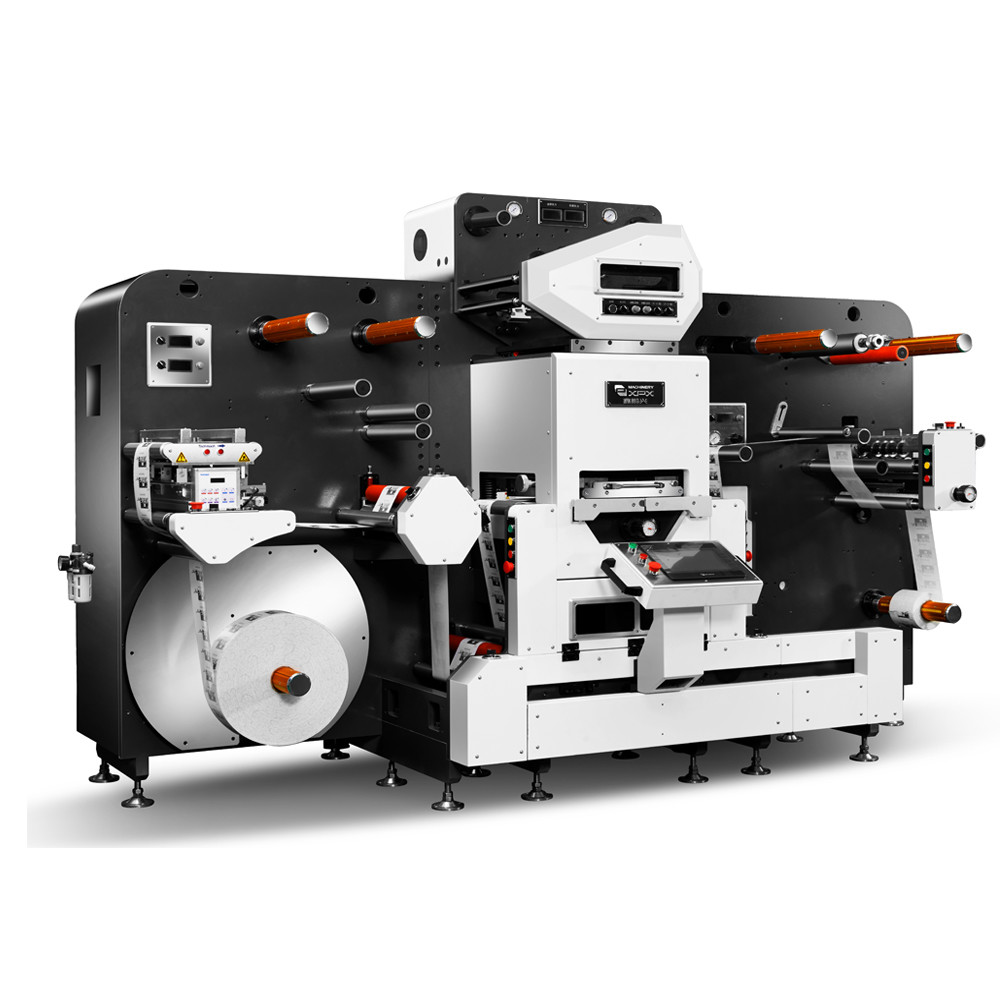

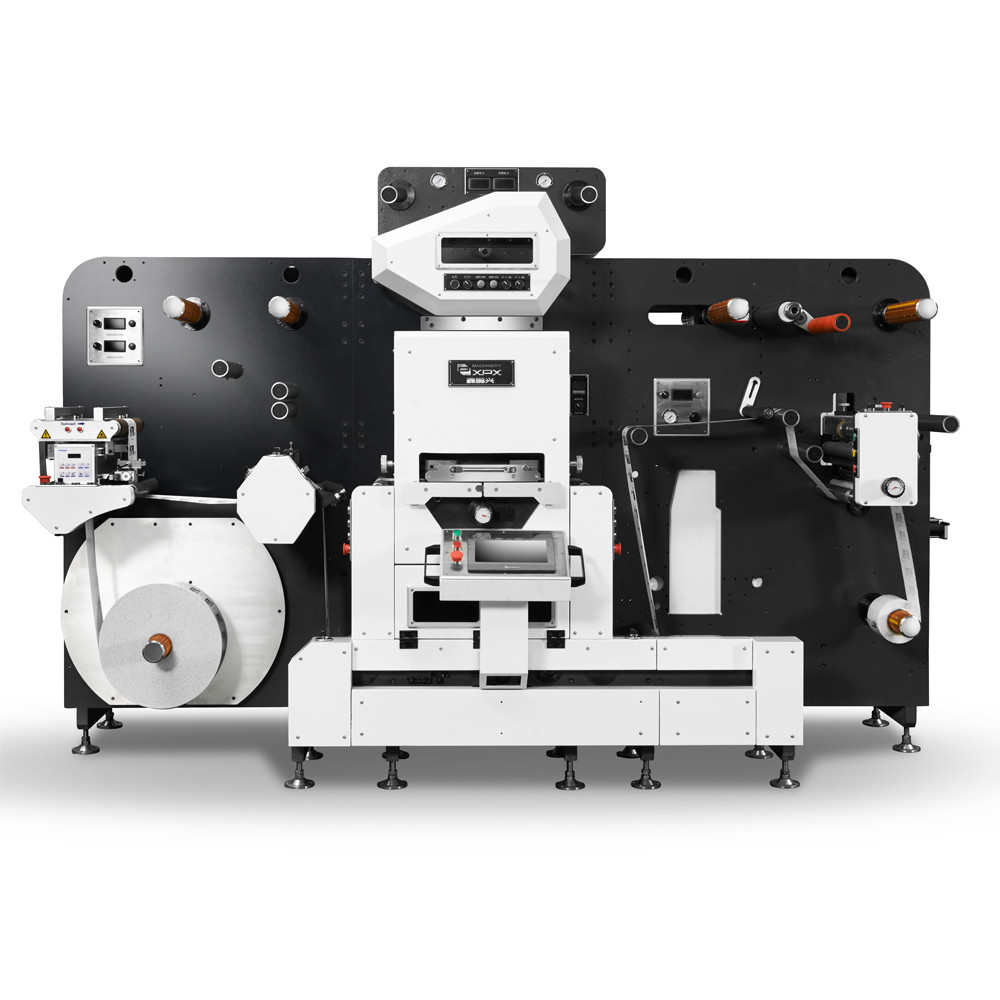

Name: Flatbed Sticker Label Die Cutting Machine Hot Stamping High Speed
Brand: Shenzhen XPX Machinery Equipment Co., Ltd.
SKU: VAN-360
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C

Condition: New

Type: Paper Cutting Machine

Automatic Grade: Automatic

Voltage: 380V

Weight: 5200kg

Warranty: 1year

After-sales Service Provided: Field Installation, Commissioning And Training

Product Name: VAN-360F High Speed Hot Stamping/ Flatbed Die Cutting

Application: Rotary Die Cutting Machine

Model: VAN-360

Output Speed: 120M/MIN

NET Weight: 4000kg

Max Die Cutting Size: 350mm*370mm

Max Width: 360mm

Package: Wooden Case

Power Supply: 380V 3 Phase 50/60Hz 35A

Application Area: LABEL

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: XPX

Model Number: VAN-360

Payment & Shipping Terms

Supply Ability: 100 Piece/Pieces per Month

Gallery

Flatbed Sticker Label Die Cutting Machine Hot Stamping High Speed

Product Description

VAN-360F High Speed Hot Stamping/ Flatbed Die Cutting/Laminating/Snow ball stripping/Slitting/Rewinding Flatbed Sticker Label Die Cutting Machine Hot Stamping High Speed 0

Flatbed Sticker Label Die Cutting Machine Hot Stamping High Speed 1

Flatbed Sticker Label Die Cutting Machine Hot Stamping High Speed 2

Flatbed Sticker Label Die Cutting Machine Hot Stamping High Speed 3

Model	VAN-360
Max feeding width	360mm
Max die cutting speed	120M/MIN
Max die cutting size	350mm*370mm
Die cutting precision	±0.1mm
Hot stamping precision	±0.1mm
Max Hot foil diameter	260mm
Hot foil feeding driection	0° /90°
Max hot foil rolls	8rolls
Heat temperature	0~200 ° C
Full rotary die cutting size	70-120teeth
Min slitting width	20mm
Max unwinding diameter/meter	700mm/2000M
Max rewinding diameter/meter	700mm/2000M
Air pressure Supply	0.4~0.6Mpa
Voltage/current	3 phase 380V
Total power	30KW
Machine size	320014001700mm

Flatbed Sticker Label Die Cutting Machine Hot Stamping High Speed 4

Flatbed Sticker Label Die Cutting Machine Hot Stamping High Speed 5
